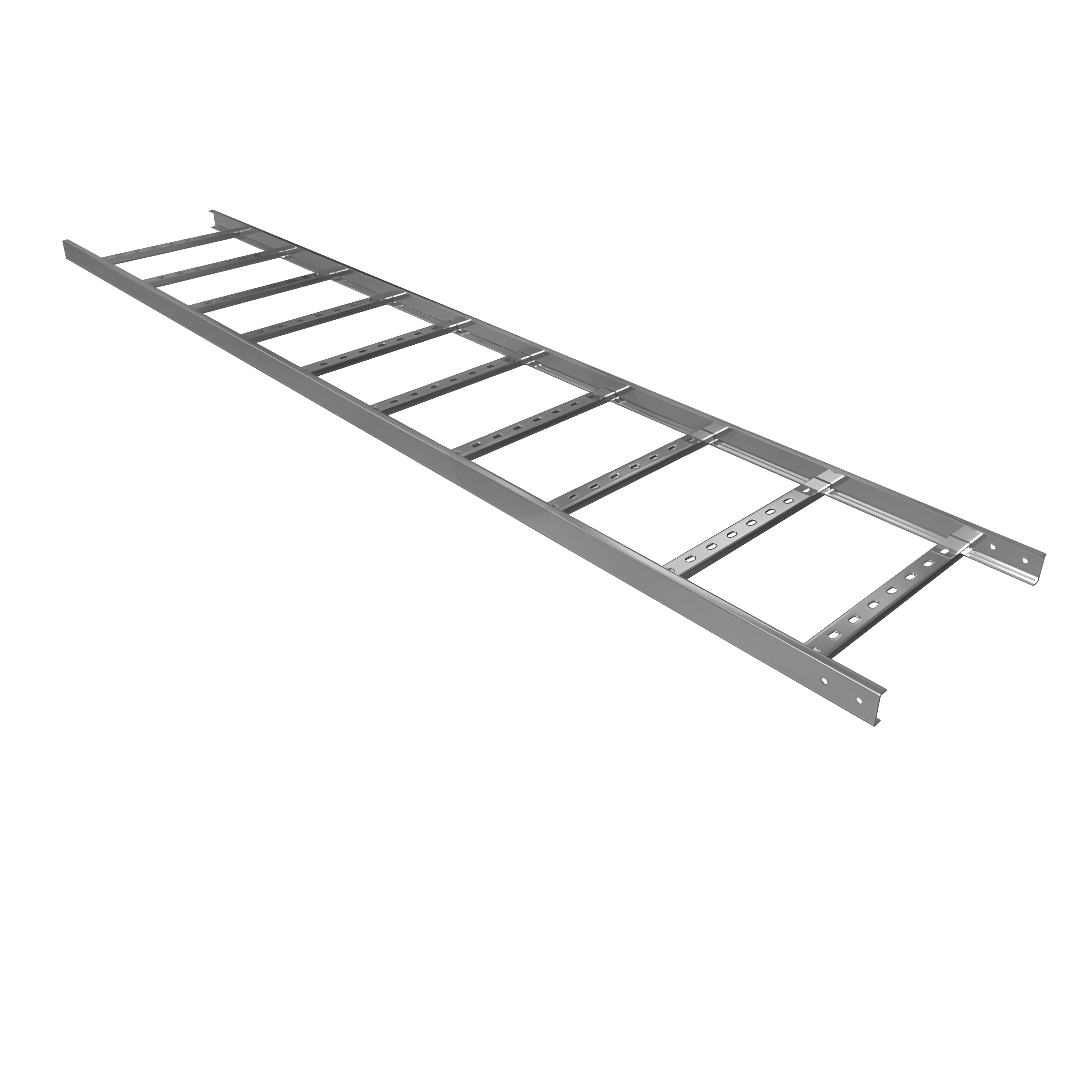

Ladder Cable Tray
Ladder type cable trays are also ideal for heavy duty power distribution in industrial facilities. Perforation brings in air flow in the cable box, higher current flow can be achieved at cross-sections, and overheating and consecutive damaging of cables are avoided.
Specifications
| LADDER CABLE TRAYS GALVANISED, ELECTRO PLATED, PAINTED ( RED OXIDE, POWDER COATED ) | |
| Width (W) | 50mm to 1200mm |
| Side Channel Height (H) | 50mm to 150mm |
| Run Width | 30mm to 50mm |
| Run Height | 10mm to 20mm |
| Run C to C | 250mm to 300mm |
| Thickness (T) | 1.6mm, 2mm, 2.5mm & 3mm |
| Length (L) | 2500mm / 3000mm |
| MOC | MS Steel, Stainless Steel, Aluminum |
| CABLE TRAY MANUFACTURING STANDARDS | |
| IS | 4759 / 2629 / 2623 |
